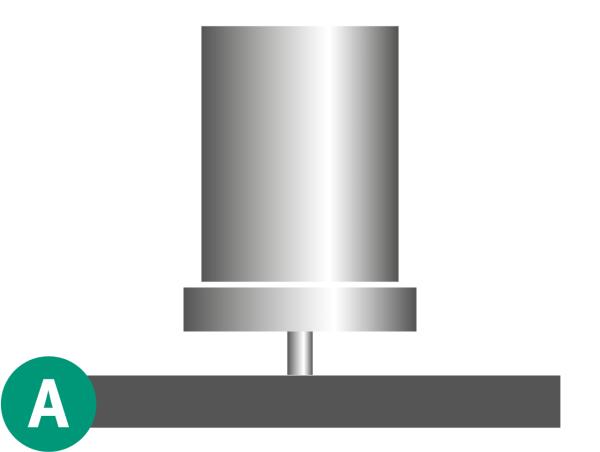

The tip of the bolt contacts the workpiece. The arc is initiated.
- Home
- Standardní výrobky
- Vedení řetězů, řemenů a kluzné profily
- Fixing the steel C-profile with threaded bold welding technology
Fastening of steel C profiles
with threaded bolt welding technology

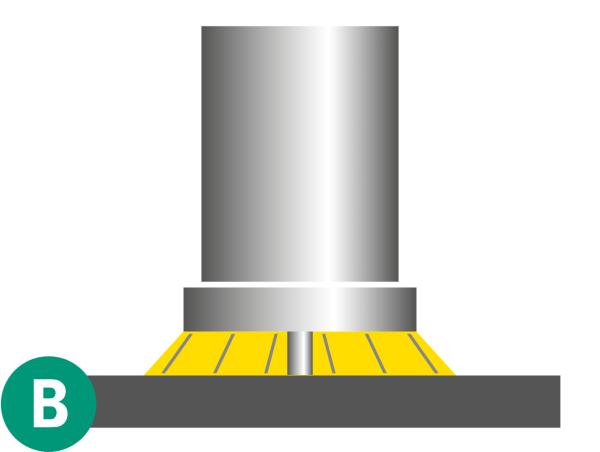

The arc produces a fine melting zone on the bolt and the workpiece.

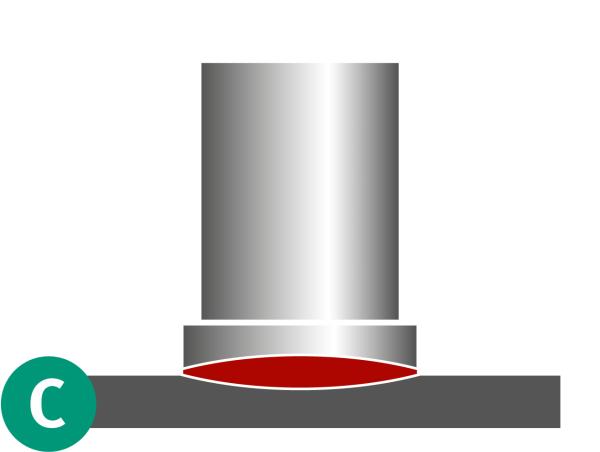

The bolt is plunged into the weld pool, the material solidifies and is welded to the bolt.
Benefits
- Individual fixing of the welded bolt to your specification at any position on the steel profile
- Cost-effective process as no need for complex preparatory work
- Available for galvanized and stainless steel profiles
- Threaded bolts up to M8
- Max. bolt length 40mm
Other dimensions on request.
Gewindegröße | Artikelnummer Stahl | Artikelnummer Edelstahl |
---|---|---|
M4x8 | 539 901 220 | 539 901 060 |
M4x12 | 539 900 738 | 539 900 716 |
M5x8 | 539 900 737 | 539 900 717 |
M5x12 | 539 901 221 | 539 900 928 |
M5x20 | 539 900 736 | 539 900 739 |
M6x12 | 539 901 222 | 539 900 750 |
M6x15 | 539 900 786 | 539 901 226 |
M6x25 | 539 900 735 | 539 900 740 |
M8x12 | 539 901 223 | 539 901 180 |
M8x15 | 539 900 745 | 539 900 682 |
M8x20 | 539 900 746 | 539 900 683 |
M8x30 | 539 900 747 | 539 900 748 |
M8x35 | 539 901 224 | 539 901 091 |
M8x45 | 539 901 225 | 539 900 870 |
M8x60 | 539 900 988 | 539 900 989 |
