Fastening of steel C profiles

with T-head bolts

T-head bolts provide a secure connection between your machine element and our C profiles. As a rule, a one-track connection is used. Two-track connections are available if desired. Our application technology department will be glad to advise you to ensure that you obtain the best implementation for your requirements.

We can bore or punch individual hole patterns if you provide us with an appropriate drawing. For T-head bolt dimensions, see the following page.

  • Milled groove for bolt head prevents simultaneous turning of T-head bolt
  • Fastening of screw nuts from below (with T-head bolts)
  • Punching and boring of required hole pattern in accordance with individual drawings

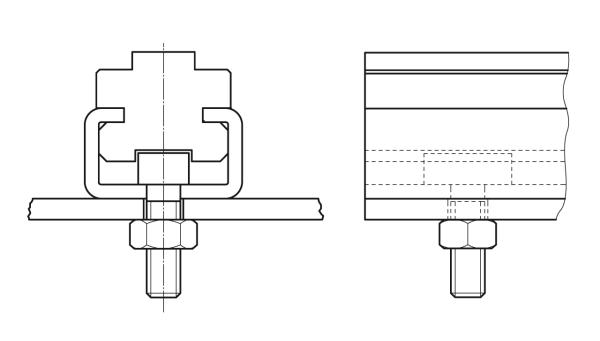

One-track fastening (standard)

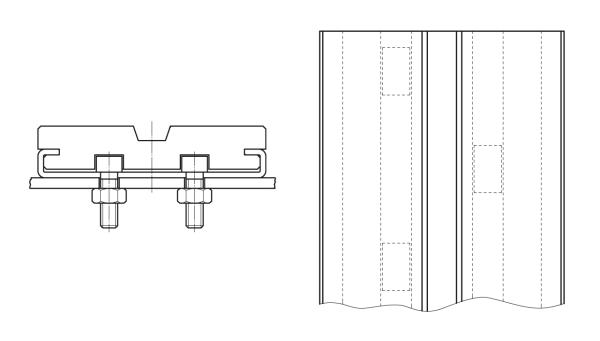

Two-track fastening

(optional for wide C6 and C12 profiles)
