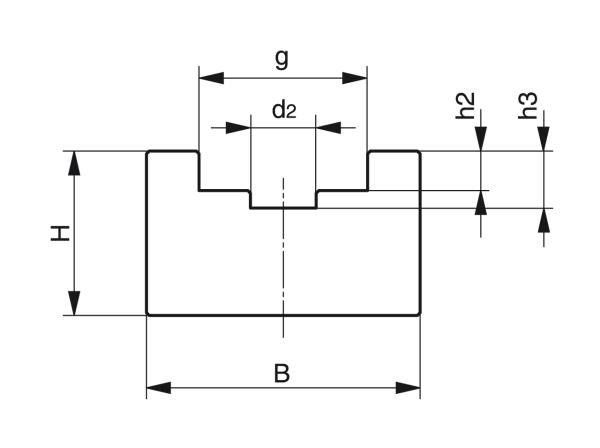

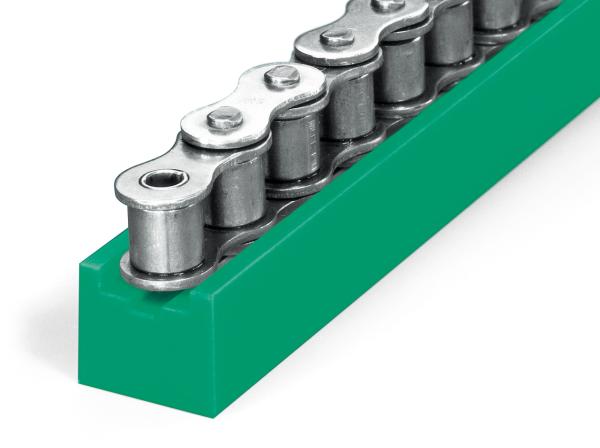

| DIN 8187 řetěz č. | Rozměry řetězu v palcích | B | H | d2 | g | h2 | h3 | Kódové značení | CAD | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3/8" x 5/32" | 20 | 15 | 4 | 9.4 | 2.8 | 4.2 | 221110012 | CADClick | ||
| 06B-1 | 3/8" x 7/32" | 20 | 15 | 4 | 9.4 | 2.8 | 4.2 | 221110013 | CADClick | |
| 083-1 | 1/2" x 3/16" | 20 | 15 | 5 | 10.8 | 2.3 | 3.8 | 221110014 | CADClick | |
| G = 12.8 mm | 1/2" x 1/4" | 25 | 15 | 5 | 12.8 | 3.5 | 5 | 221110015 | CADClick | |
| 08B-1 | 1/2" x 5/16" | 25 | 15 | 5 | 12.8 | 3.5 | 5 | 221110017 | CADClick | |
| 5/8" x 1/4" | 25 | 15 | 6 | 15.4 | 3.6 | 5.2 | 221110016 | CADClick | ||
| 085-1 | 1/2" x 1/4" | 20 | 15 | 5 | 11.8 | 3.2 | 4.7 | 221110018 | CADClick | |
| 10B-1 | 5/8" x 3/8" | 25 | 15 | 6 | 15.4 | 3.6 | 5 | 221110019 | CADClick | |
| 12B-1 | 3/4" x 7/16" | 25 | 20 | 7 | 17 | 3.9 | 5.7 | 221110020 | CADClick | |
| 16B-1 | 1" x 17 mm | 33 | 25 | 10 | 24 | 8.4 | 10.6 | 221110021 | CADClick | |
| 20B-1 | 1 1/4" x 3/4" | 55 | 25 | 11 | 28 | 10 | 12.2 | 221110022 | CADClick | |
| 24B-1 | 1 1/2" x 1" | 60 | 30 | 16 | 36.6 | 13 | 16 | 221110023 | CADClick | |
| 28B-1 | 1 3/4" x 31 mm | 65 | 30 | 17 | 40 | 16 | 18 | 221110024 | CADClick | |
| 32B-1 | 2" x 31 mm | 70 | 30 | 20 | 44.6 | 16 | 20 | 221110025 | CADClick |
Downloads
- Product information (81 kB)
