Vlastnosti
Vybraná varianta

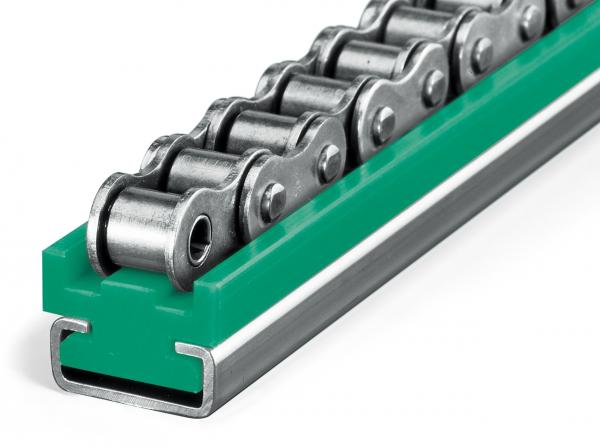

Typ CTS, Originální Materiál "S"® zelený, délka (2000 mm), pozinkovaná ocel, C-profil (2000 mm)

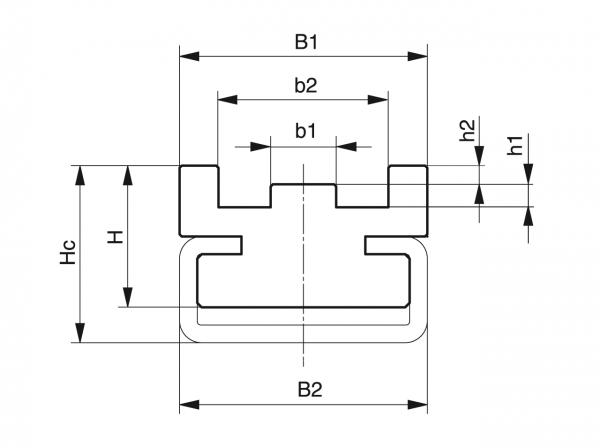

| DIN 8187 řetěz č. | Rozměry řetězu v palcích | C-profil | B1 | B2 | H | Hc | b1 | b2 | h1 | h2 | Kódové značení | Kód C-Profily | CAD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 3/8" x 7/32" | C3 | 20 | 20 | 14 | 17 | 3.8 | 13 | 1.5 | 1.1 | 221310001 | 351020003 | CADClick | |
| 083-1 | 1/2" x 3/16" | C3 | 20 | 20 | 14 | 17 | 3 | 12.4 | 1.6 | 1.4 | 221310002 | 351020003 | CADClick | |
| 085-1 | 1/2" x 1/4" | C3 | 22 | 20 | 14 | 17 | 4.5 | 15.1 | 2.2 | 1.6 | 221310003 | 351020003 | CADClick | |
| 08B-1 | 1/2" x 5/16" | C3 | 25 | 20 | 16 | 20 | 5.7 | 16.3 | 2.2 | 1.6 | 221310004 | 351020003 | CADClick | |
| 5/8" x 1/4" | C3 | 25 | 20 | 16 | 20 | 4.1 | 16.1 | 2.6 | 2.1 | 221310005 | 351020003 | CADClick | ||
| 10B-1 | 5/8" x 3/8" | C5 | 28 | 28 | 16 | 20 | 7.4 | 19.2 | 2.6 | 2.1 | 221310006 | 351020005 | CADClick | |
| 12B-1 | 3/4" x 7/16" | C5 | 30 | 28 | 18 | 22 | 9.2 | 21.8 | 2.4 | 2.8 | 221310007 | 351020005 | CADClick | |
| 16B-1 | 1" x 17 mm | C9 | 42 | 38 | 25 | 30 | 15 | 35 | 3.5 | 3.3 | 221310008 | 351020009 | CADClick | |
| 20B-1 | 1 1/4" x 3/4" | C9 | 50 | 38 | 30 | 35 | 16.8 | 40 | 4.2 | 4 | 221310009 | 351020009 | CADClick |
