SPANN-BOX® velikost 1

DIN 8187 chain no. Pitch in mm Pitch in inch simplex duplex triplex
≤ 06B arc segment profile
06B 9,525 3/8 return profile, semi-circular profile, sprocket arc segment profile, return profile, semi-circular profile arc segment profile, return profile, semi-circular profile
08B 12,7 1/2 arc segment profile, return profile, semi-circular profile, sprocket arc segment profile, return profile, semi-circular profile arc segment profile, return profile, semi-circular profile
10B 15,875 5/8 arc segment profile, return profile, semi-circular profile, sprocket arc segment profile, return profile, semi-circular profile arc segment profile
12B 19,05 3/4 arc segment profile, return profile, semi-circular profile, sprocket arc segment profile, return profile, semi-circular profile arc segment profile
16B 25,4 1 arc segment profile, return profile arc segment profile
20B 31,75 arc segment profile
Tensioning force   light heavy
1 released spring 58 – 32N 132 – 60N
2 released springs 116 – 64N 264 – 120N
3 released springs 174 – 96N 396 – 180N
  Tension distance 40mm 40mm

Reverzní chod řetězu

V případě reverzního chodu řetězu doporučujeme použití příslušného napínáku Spann-Box® s prodlouženým tělesem. Tato varianta je k dispozici s tvrdou pružinou.

Spann-Box® velikost 1 je dostupný v několika provedeních. Robustní konstrukce ocelového tělesa napínáku zaručuje odolnost a spolehlivý provoz napínáku.
Pro pokrytí všech požadavků od zákazníků nabízíme pět různých provedení.

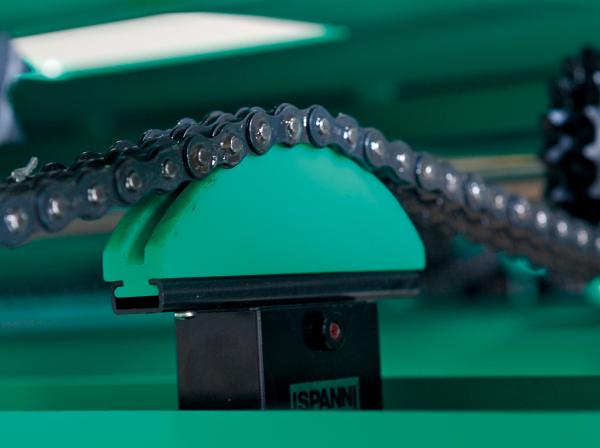

Murtfeldt Spannsysteme: Der Kettenspanner SPANN-BOX® Größe 1 in Betrieb

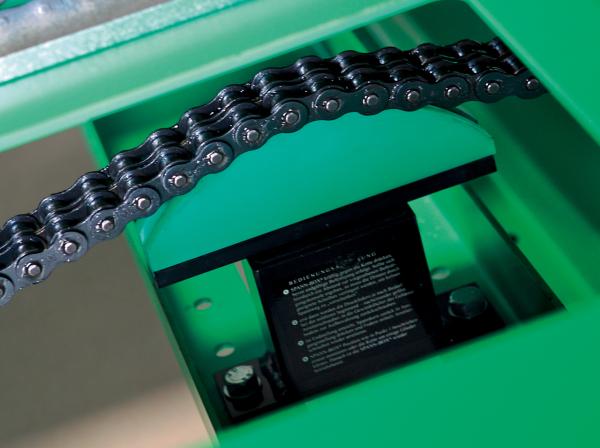

Murtfeldt Spannsysteme: Der Kettenspanner SPANN-BOX® Größe 1 in Betrieb
