Reducing nipple

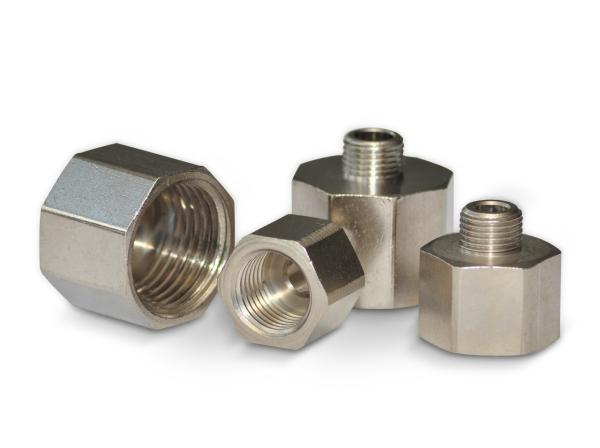

Reducing nipple - Lubrication system couplings - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Type G1 connection G2 connection L1 i1 S Article ID CAD
252M - 1/8 - 1/4 G 1/8" G 1/4" 19 6 17 313300001
252M - 1/8 - 3/8 G 1/8" G 3/8" 20 6 19 313300002
252M - 1/8 - 1/2 G 1/8" G 1/2" 24 6 24 313300003
253M - 1/4 - 1/8 G 1/4" G 1/8" 13 8 17 313300004
253M - 3/8 - 1/8 G 3/8" G 1/8" 14 9 19 313300005
253M - 1/2 - 1/8 G 1/2" G 1/8" 15.5 10 24 313300006

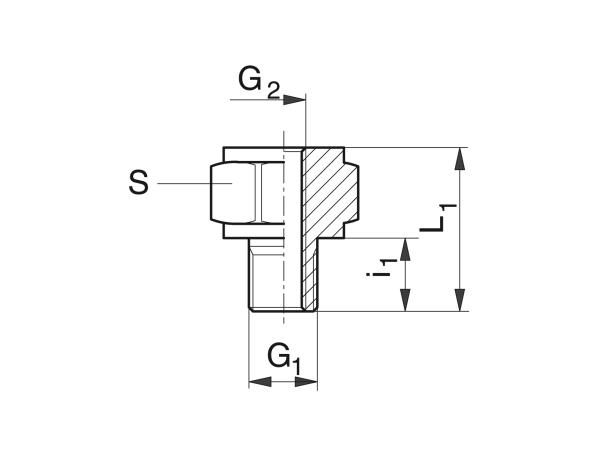

Reducing nipple - Lubrication system couplings - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1
