Slip-on rails for round steel bars

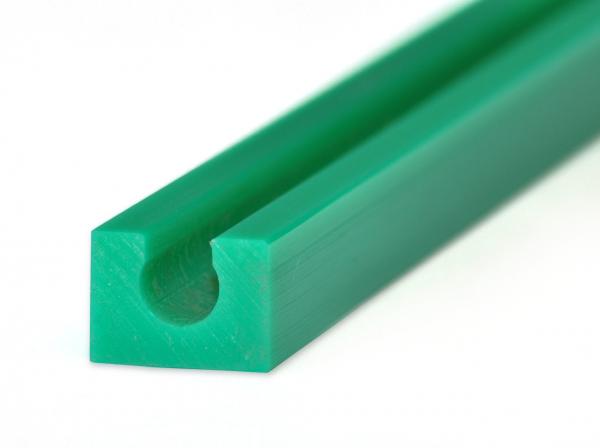

Slip-on rails for round steel bars - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Abbildung 1

For the full view of this product area, please select the desktop display.

For the full view of this product area, please switch to your tablet's landscape format (horizontal view).

Slip-on rails for round steel bars Dimensions H/B/d Delivery length in mm Production method Original Material "S"® Article ID CAD
Square-cut for steel rod, D = 8 mm 14/20/7,0 2000 Milled Green 211410001
Square-cut for steel rod, D = 8 mm 14/20/7,0 2000 Milled Black antistatic 211410004
Square-cut for steel rod, D = 10 mm 16/22/8,5 2000 Milled Green 211410002
Square-cut for steel rod, D = 10 mm 16/22/8,5 2000 Milled Black antistatic 211410005
Square-cut for steel rod, D = 12 mm 18/24/10 2000 Milled Green 211410003
Square-cut for steel rod, D = 12 mm 18/24/10 2000 Milled Black antistatic 211410006
Round-cut for steel rod, D = 8 mm 14/20/7,0 2000 Milled Green 211410007
Round-cut for steel rod, D = 8 mm 14/20/7,0 2000 Milled Black antistatic 211410010
Round-cut for steel rod, D = 10 mm 16/22/8,5 2000 Milled Green 211410008
Round-cut for steel rod, D = 10 mm 16/22/8,5 2000 Milled Black antistatic 211410011
Round-cut for steel rod, D = 12 mm 18/24/10 2000 Milled Green 211410009
Round-cut for steel rod, D = 12 mm 18/24/10 2000 Milled Black antistatic 211410012

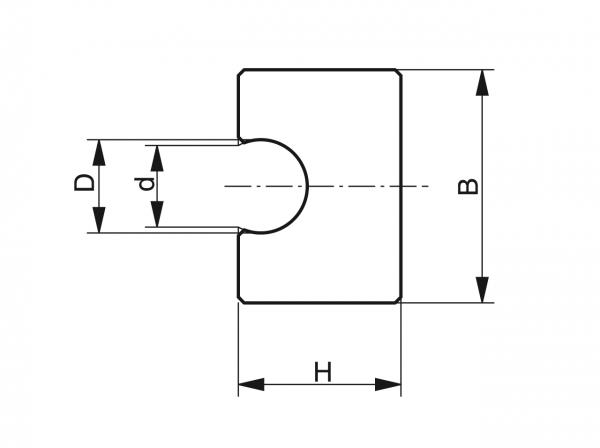

Slip-on rails for round steel bars - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 1

  • Square clip-on guides

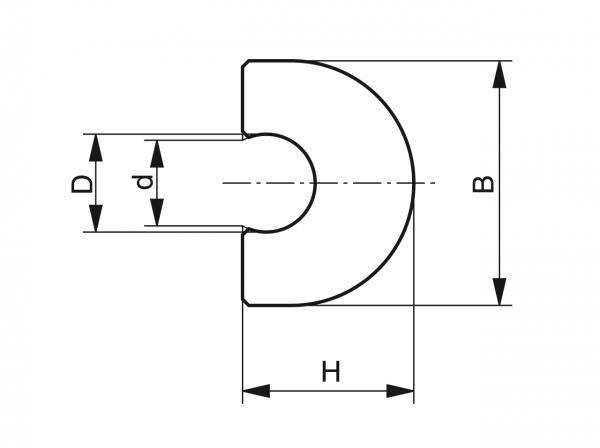

Slip-on rails for round steel bars - Profiles for conveying and transportation - Murtfeldt GmbH Kunststoffe - Technische Zeichnung 2

  • Round clip-on guides
