Profiles for slat band chains
For the full view of this product area, please select the desktop display.
For the full view of this product area, please switch to your tablet's landscape format (horizontal view).
Profile
|
Roller length (in m)
|
Production method
|
Original Material "S"®
|
Article ID
|
CAD
|
|
L profile, 20 x 5
|
35
|
Milled
|
Green
|
211310034
|
|
|

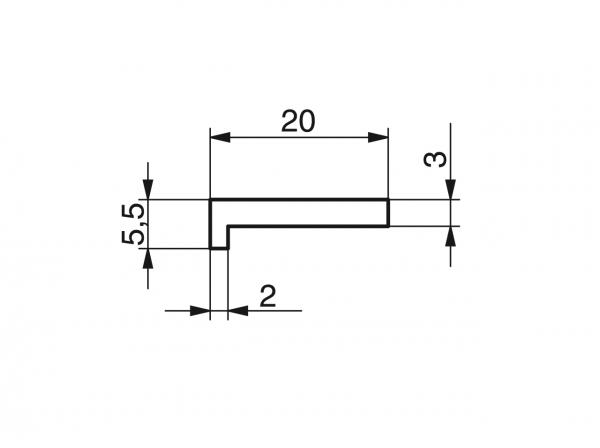

L profile, 20 x 5.5
|
50
|
Extruded
|
Green
|
211310044
|
|
|

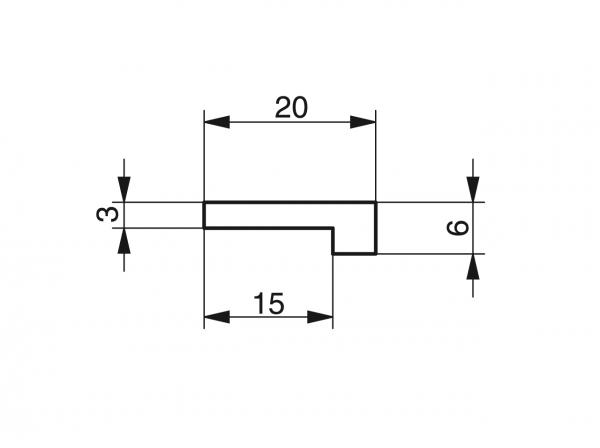

L profile, 20 x 6
|
45
|
Milled
|
Green
|
211310035
|
|
|

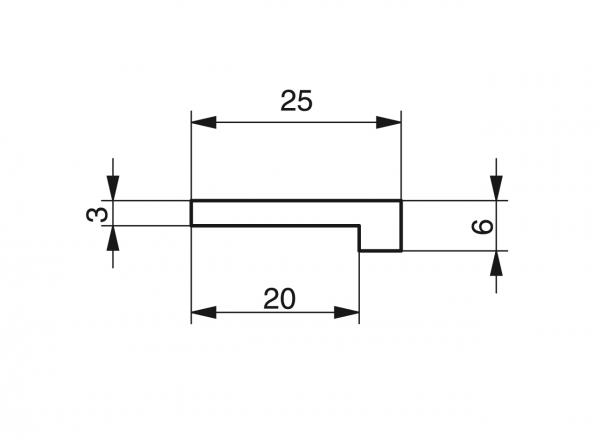

L profile, 25 x 6
|
45
|
Milled
|
Green
|
211310036
|
|
|

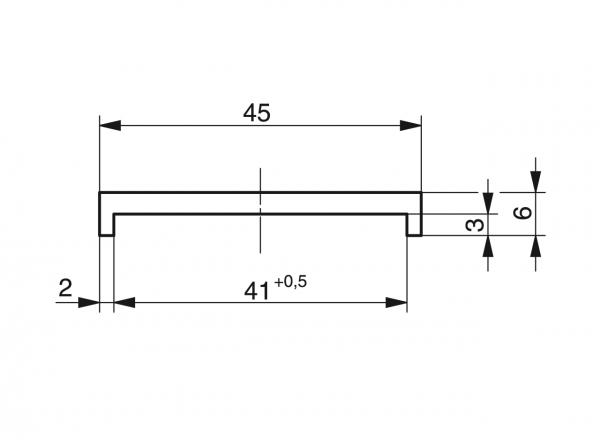

Slide profile type U, 45 x 6
|
35
|
Milled
|
Green
|
211310037
|
|
|

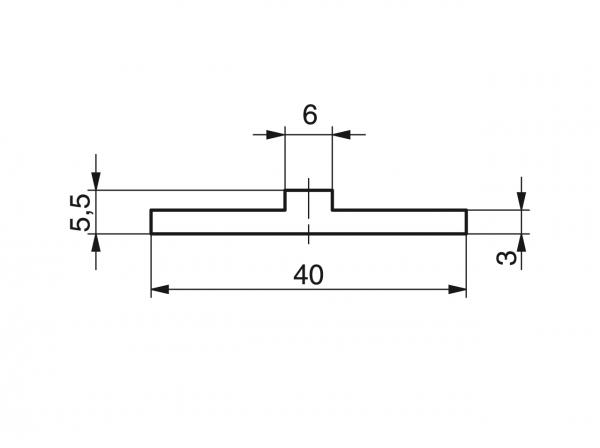

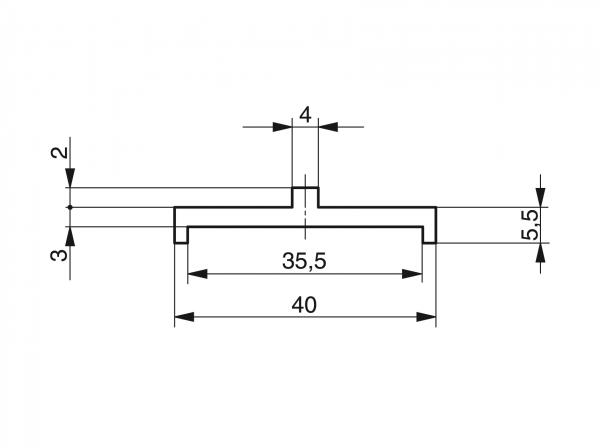

Bulge profile, 40 x 6
|
35
|
Milled
|
Green
|
211310033
|
|
|
Bulge profile, 40 x 6*
|
50
|
Extruded
|
Green
|
211310042
|
|
|
Bar bulge profile, 40 x 7.5*
|
50
|
Extruded
|
Green
|
211310043
|
|
|
Bar bulge profile, 45 x 18*
|
6
|
Extruded
|
Green
|
211310002
|
|
|

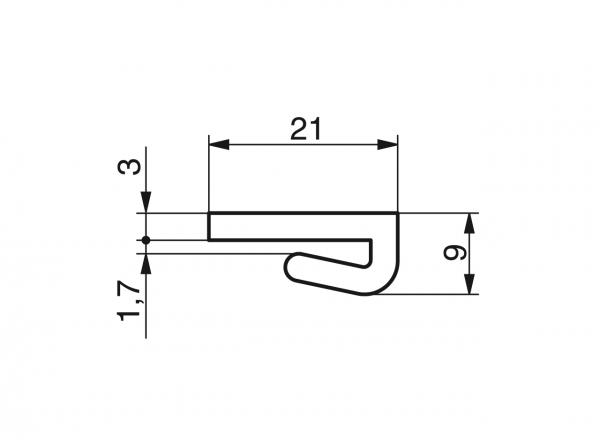

Flat clamping profile, 21 x 9
|
50
|
Extruded
|
Green
|
211310004
|
|
|
Flat clamping profile, 26 x 11.8
|
50
|
Extruded
|
Natural
|
211310039
|
|
|
L clamping profile, 21 x 11
|
50
|
Extruded
|
Green
|
211310005
|
|
|

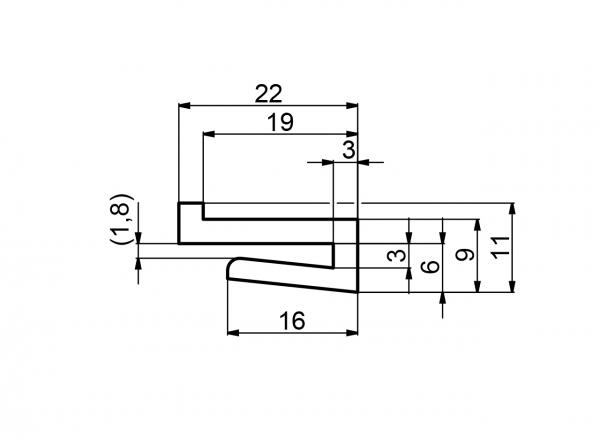

L clamping profile, 22 x 11
|
65
|
Extruded
|
Green
|
211310041
|
|
|

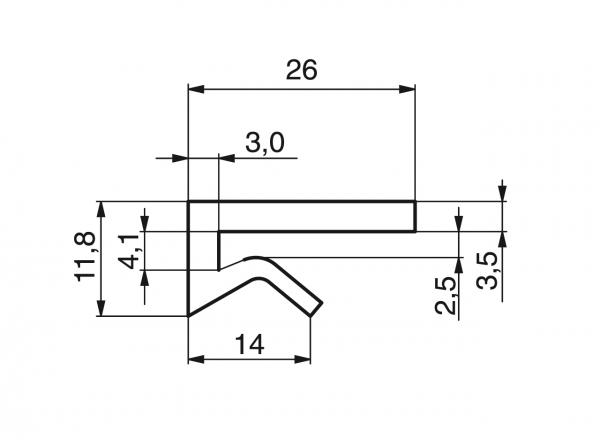

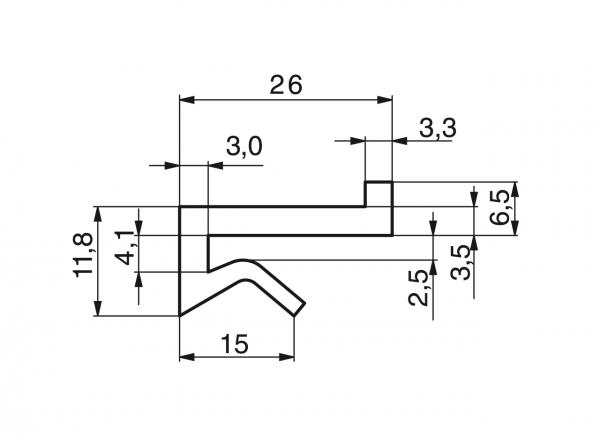

L clamping profile, 26 x 14.8
|
30
|
Extruded
|
Natural
|
211310040
|
|
|

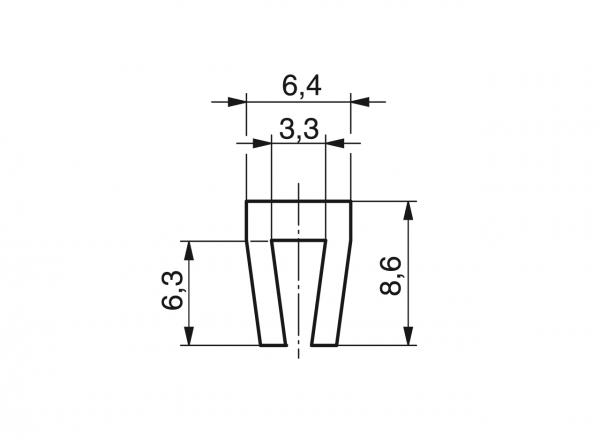

U clamping profile, 6.3 x 8.7
|
50
|
Extruded
|
Natural
|
211310007
|
|
|

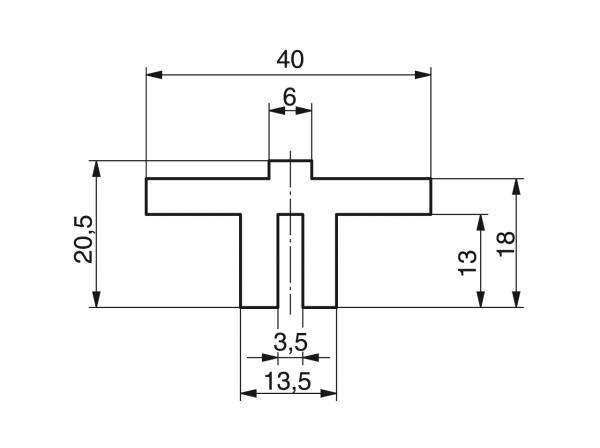

T slip-on profile, 40 x 20.5
|
2
|
Milled
|
Green
|
211310030
|
|
|

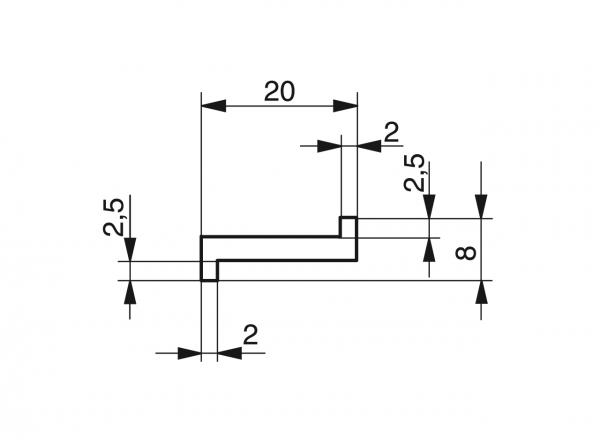

Z profile, 20 x 8
|
35
|
Milled
|
Green
|
211310031
|
|
|
Z profile, 20 x 8
|
50
|
Extruded
|
Green
|
211310038
|
|
|
A minimum order quantity is required for items marked with an *. Please contact our sales department.
